Home/ Waffa Junior Line/ Ground Socket
Waffa Junior Line

Ground Socket

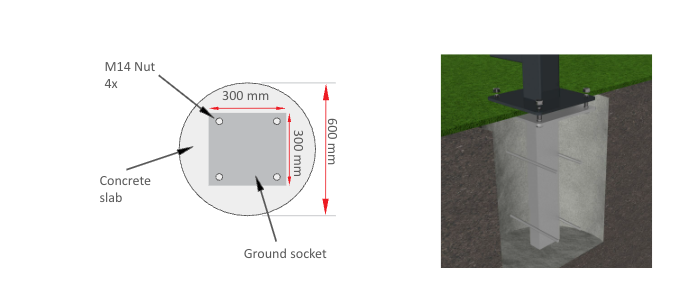

Waffa Junior Ground Socket is designed to provide a stable and secure foundation for easy and reliable installation.

Project pricing. Prices for resellers, municipalities and companies are quoted per project — request yours below.
Ask a question

Downloads

Technical details

Description & specifications

Product information

Length
300 mm
Width
300 mm
Height
600 mm
Weight
70 kg

Material

Frame
Steel profile frame
Finish
Hot dip galvanized

Color

Mounting post, operating arms, seats, and backrests RAL 7024 dark gray. Device body selectable — other colors on special order at extra cost.

RAL 7024
RAL 2003
RAL 3001
RAL 5012
RAL 6019
RAL 7040
Installation

Three ways to install

Every Waffa unit can be delivered for the installation type your site needs.

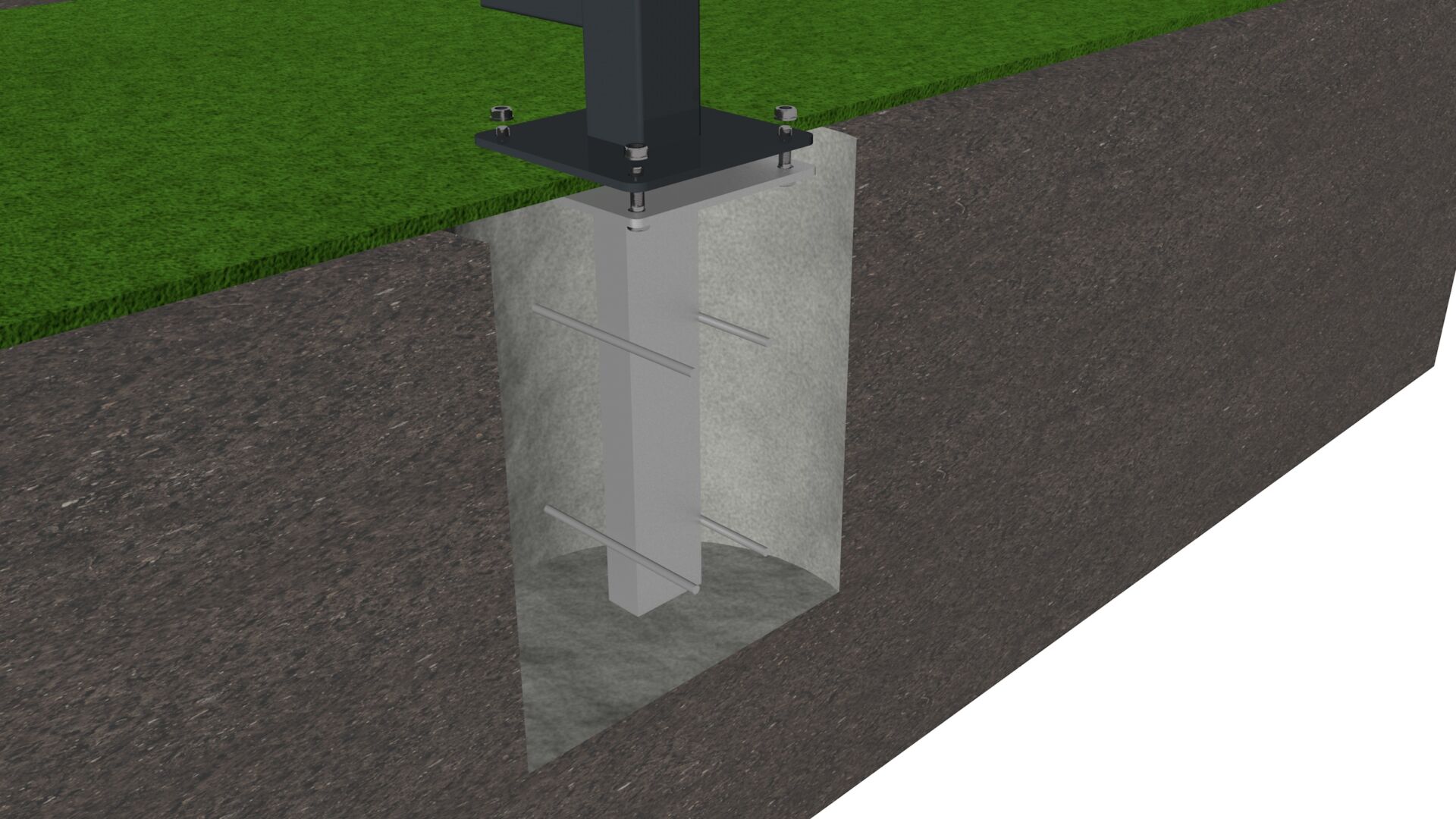

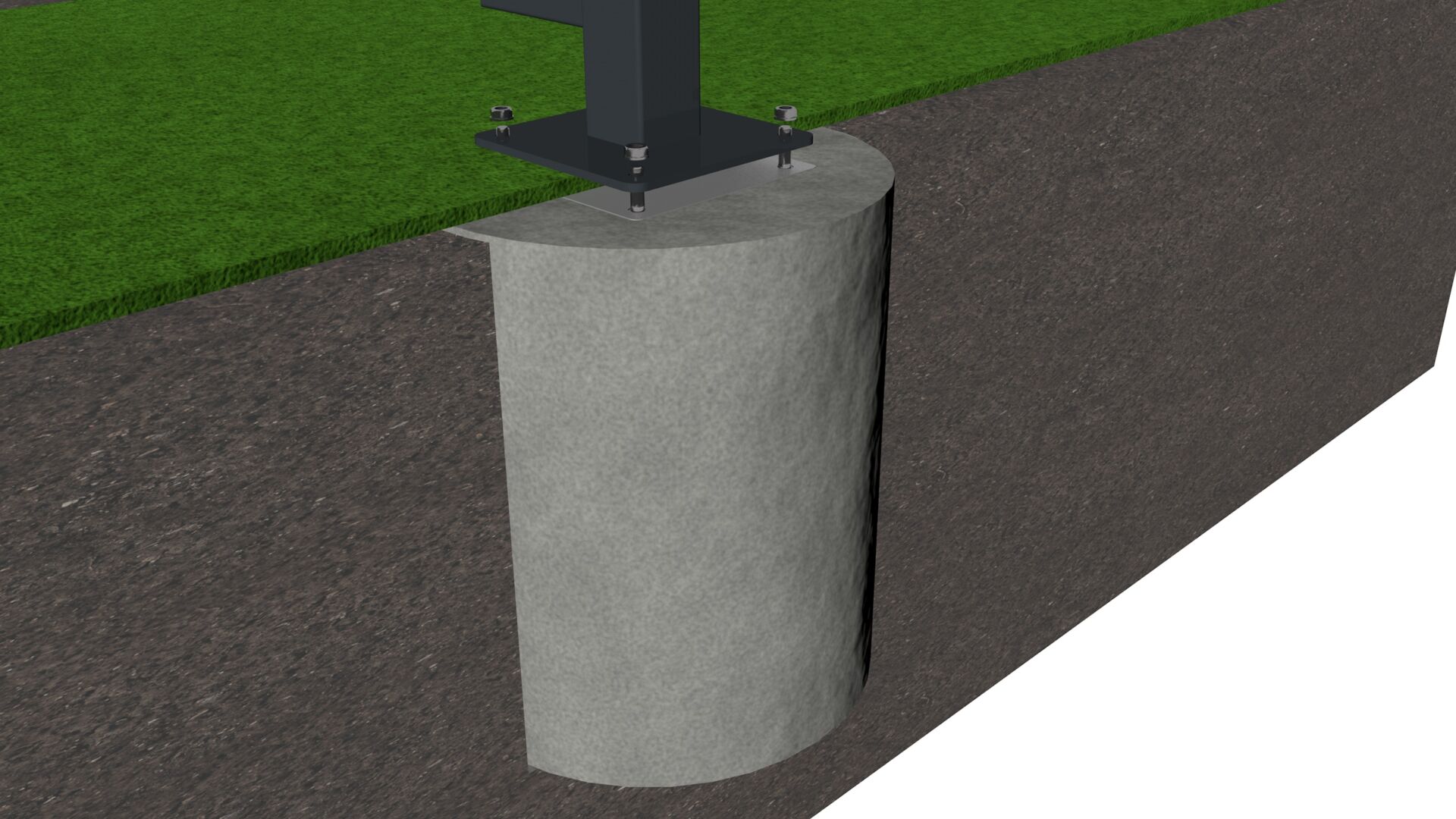

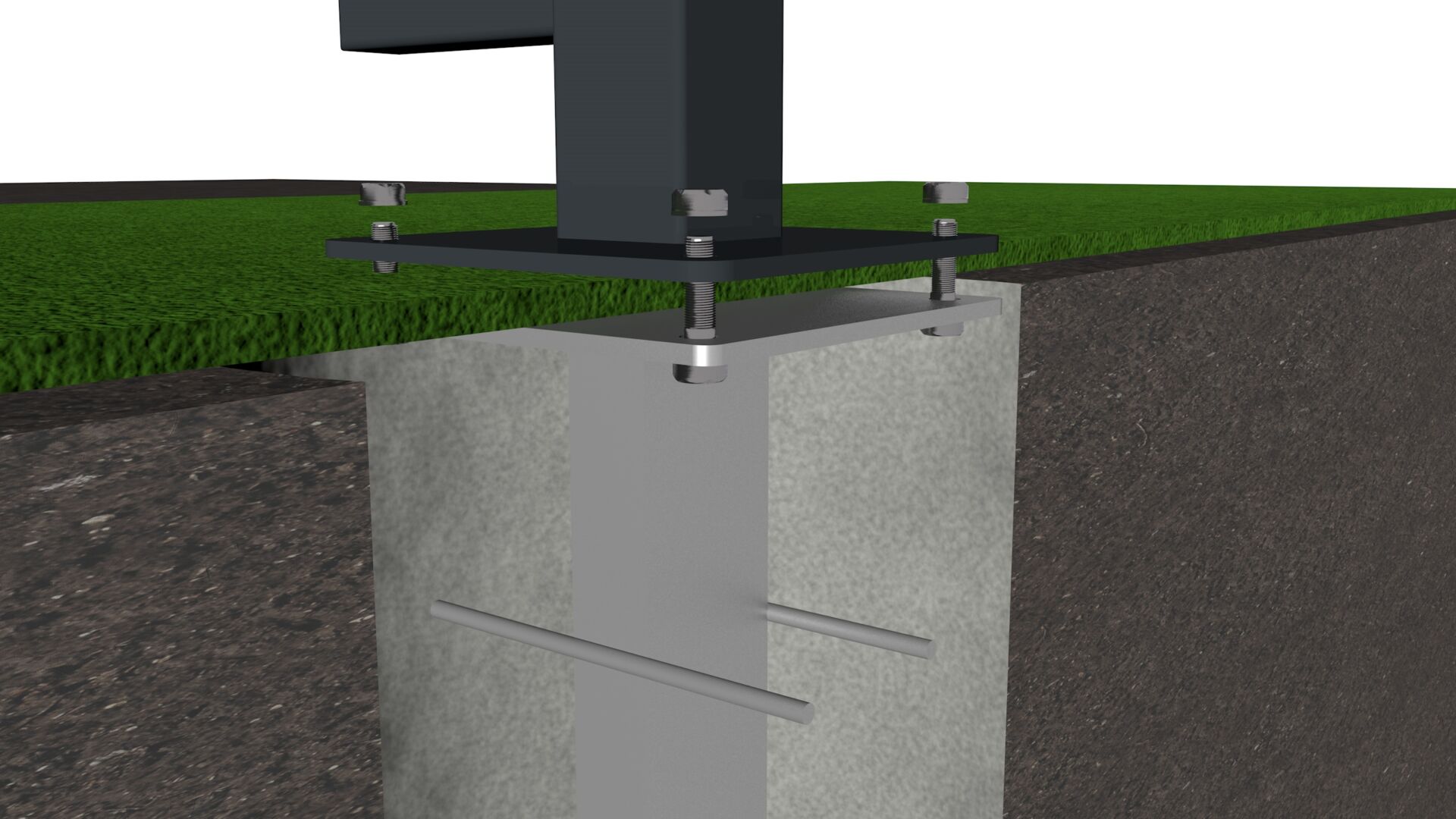

Concrete base

Concrete base

In-ground concrete foundation — the permanent standard for parks and public spaces.

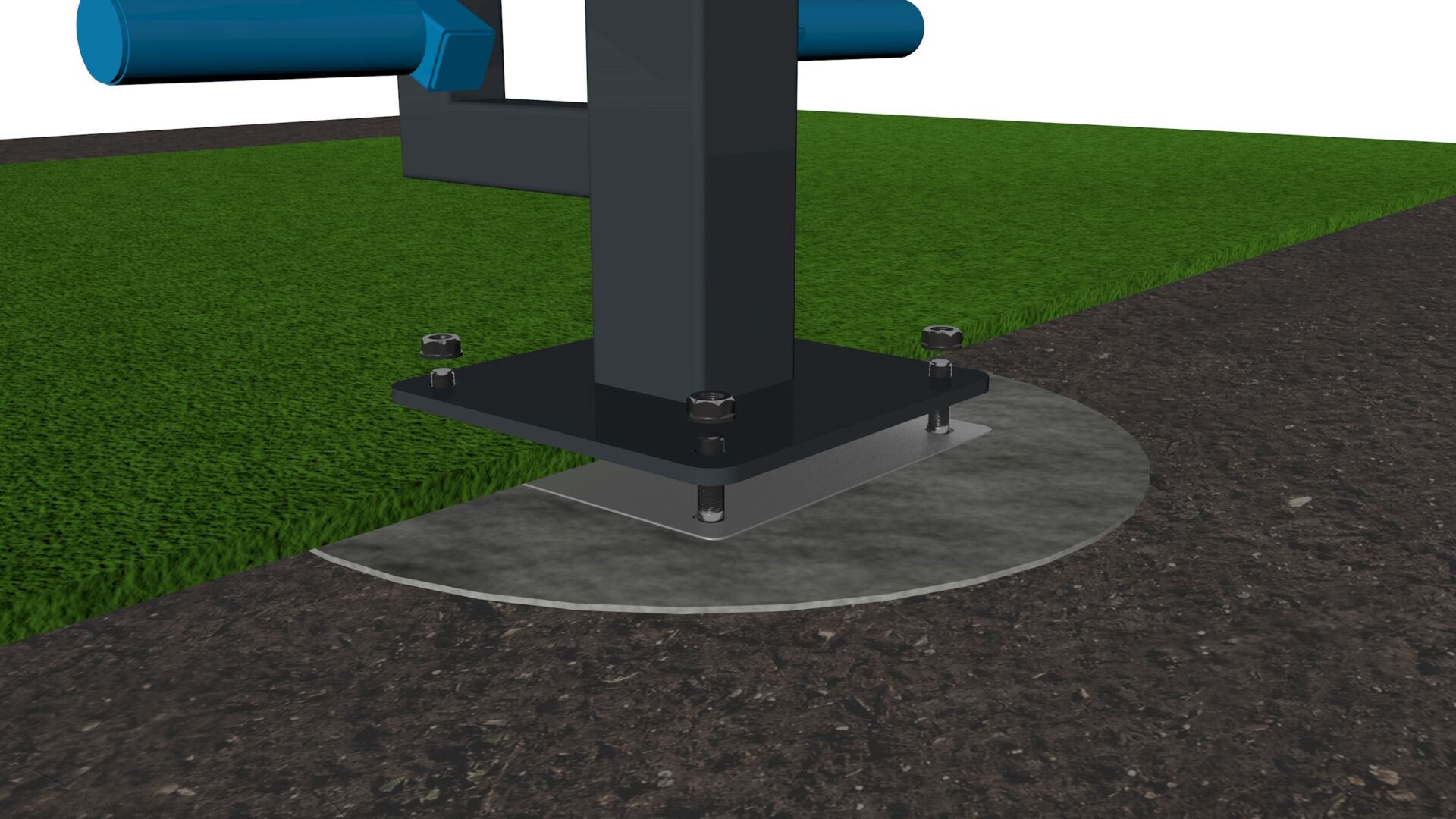

Ground Anchor base

Ground Anchor base

Anchored directly into the ground — fast installation but minimal concrete works.

Movable platform

Movable platform

LINE-X covered plywood platform (40 mm) — relocatable, no groundworks needed.

Installation guide (PDF)

Need Ground Socket for your project?

Resellers and municipalities get project pricing, delivery times and full documentation — usually within one business day.
